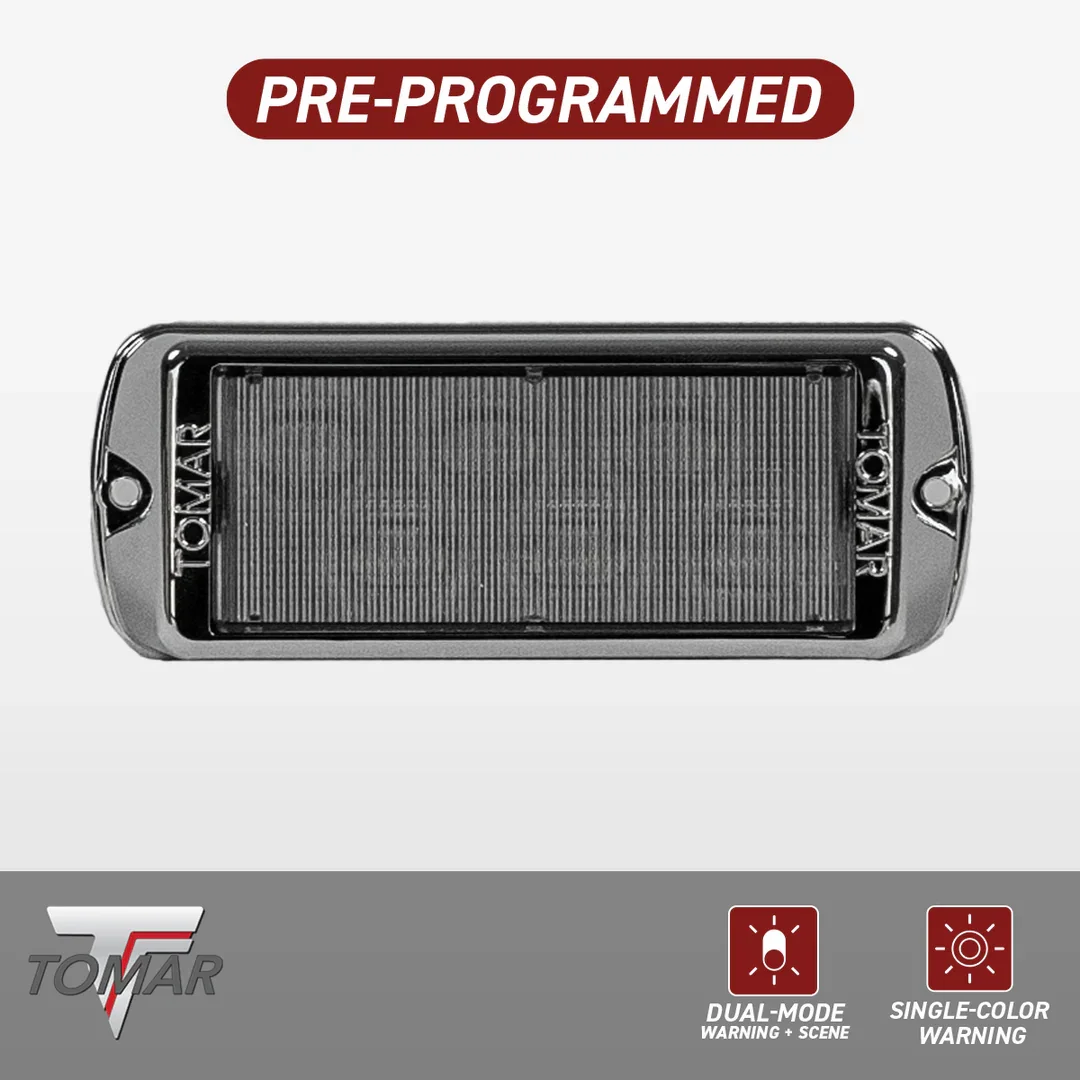

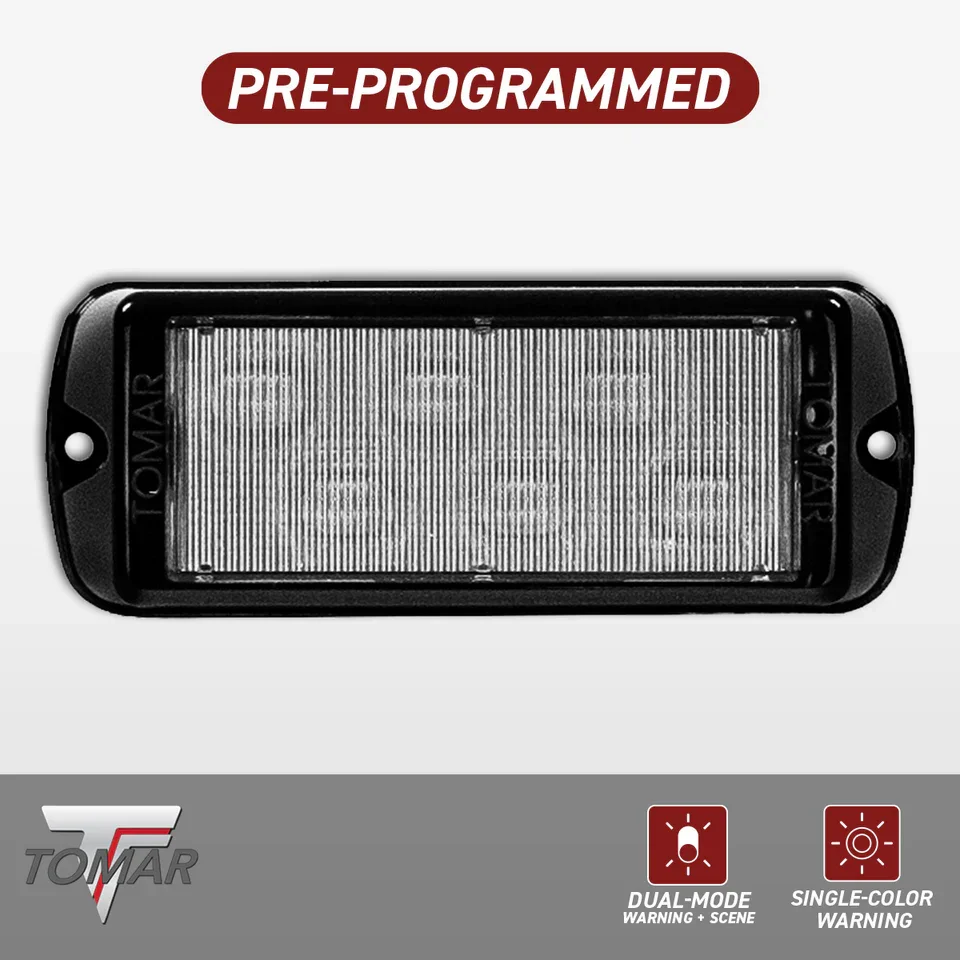

TOMAR's iLED Series Single Color Warning Dual-Mode Pre-Programmed LED Light is a full-color warning LED lamp that complies with standard warning requirements.
Our patented sealing technology ensures you have a waterproof lamp that directs light exactly where it's required, bypassing the need for additional brackets. (US patent no. 8282242 & 8092044) What distinguishes this model is its 'Pairs' feature, allowing two lights to operate synchronously for enhanced visibility and safety.
Pairs Explained
The lamps are grouped in “pairs” by the end two digits. For example, a R37D-W-RW-01 and a R37D-W-RW-02 are opposite phases of each other. This means, when powered at the same time (such as the vehicle’s master emergency mode being activated), the lamps will flash at opposite timing. For dual-color lamps which have no “off” time, they flash opposite colors of each other. This makes installation of TOMAR’s warning lights simple, without the need for programming.
See product options to select phase one or phase two
The Dual-Mode LED Light is pre-programmed to flash, meeting SAE, NFPA 1901 and 1906, and CA-13 emergency vehicle requirements with the primary wire, while providing steady burn lighting with the secondary wire. The beauty of this system is that it requires no additional programming, which means your vehicle is operational much quicker!
Pre-Programmed Warning and Dual-Mode iLED’s feature four programmable functions, but come preset to the following:
Red wire: Warning Mode 1 (color 1)
Blue Wire: Warning Mode 2 (colors 1 and 2)
Red and Blue Wires: Warning Mode 3 (colors 1 and 2)
White Wire: Scene function (steady burn white LEDs)
NOTE:
All Dual-Mode iLEDs include White LEDs triggered by the white wire as steady-burn scene lights. If the order includes two different warning colors other than white, white is automatically added for a tri-color lamp.
